Mirror API With C# 13


Please Share

GoogleAnalyticsGlass

Have you wondered how Google Glass works?  Have you assumed as I did that because Google Glass starts with Google that you are going to have to learn android in order to develop for it?   I have some good news for you, if you can make a HTTP post with a programming language you can post to the Google Glass Time-line.

I will be leaving for Google I/O tomorrow, after that I will be on vacation so I thought I would show you how easy it is to write to Google Glass Time-Line using C#.     So what would be some useful information to write to Google Glass?     How about the Google Analytics Real-time API?    How about a nice notification whenever there are X number of users on your site.   Useful … I do not know someone just told me i was geeky for doing it,   I can live with that.

Real-time API Beta

At this time, the Google Analytics Real-time API is in public beta.  This means that if you want to access the Real-time API you have to request it.    Real Time Reporting API Private Beta it normally takes about 24 hours to get access you will NOT hear anything from Google when you get access.    It just happens like magic, so wait 24 hours then try it.

Console application

In Google Developers console create an application under APIs enable Analytics API and Google Mirror API.   The Mirror API is what we use to talk to Glass,  the Analytics API is what we use to talk to Google Analytics.    For this test version we will be creating a Client id for native application.   Remember as always to fill in the email and the product name under the consent screen.

NuGet

You will need the following NuGet packages for this Tutorial.

pm> Install-Package Google.Apis.Mirror.v1
pm> Install-Package Google.Apis.Analytics.v3

You will probably end up adding most of these using’s.

using Google.Apis.Mirror.v1;
using Google.Apis.Auth.OAuth2;
using System.Threading;
using Google.Apis.Util.Store;
using Google.Apis.Services;
using Google.Apis.Analytics.v3;
using Google.Apis.Analytics.v3.Data;

Authentication

UserCredential credential = GoogleWebAuthorizationBroker.AuthorizeAsync(new ClientSecrets { ClientId = _client_id, ClientSecret = _client_secret },
                                                                         new[] { MirrorService.Scope.GlassTimeline , AnalyticsService.Scope.AnalyticsReadonly},
                                                                         "LindaGlass",
                                                                         CancellationToken.None,
                                                                         new FileDataStore("Real-timeMirror.Auth.Store")).Result;

This is the same authentication code i always use the only difference is this time we are accessing two APIs.

After running that you should have a file   in %AppData%  \  Real-timeMirror.Auth.Store

{"access_token":"ya29.LgC7epX4ap0MWR8AAABPPREY5vzo2ySNynQjPQG-jWfEnErREVncYqwHVv3Zvg",
   "token_type":"Bearer",
   "expires_in":3600,
"refresh_token":"1/FHR4omNNDH9Wj-CggfBg8VWtpSb_0VXt6AUR2VymLKQ",
       "Issued":"2014-06-18T21:20:01.260+02:00"}

Services!

This tutorial is a little different from my other tutorials.  Normally we only create one service.  Connect to Google Drive, or connect to Google Analytics.   However this time we will need two services, one that will allow us to read from Google Analytics, and another one that will allow us to write to the Mirror API.

// Everything we want to send to the Mirror API will go though the GlassService
 MirrorService GlassService = new MirrorService(new BaseClientService.Initializer()
                {
                    HttpClientInitializer = credential,
                    ApplicationName = "Mirror API Sample",
                });
 // When we want to read information from Google Analytics our requests will be made though AnalyticsRealTimeService
AnalyticsService AnalyticsRealTimeService = new AnalyticsService(new BaseClientService.Initializer()
                {
                    HttpClientInitializer = credential,
                    ApplicationName = "Mirror API Sample",
                });

Real-Time Request

The Real-time API is very limited in the dimensions and metrics it has available for you to select from;  this because the core reporting data has not finished processing.   I am going to keep this easy all we are going to do is request rt:activeUsers .  Active Users is the number of users that are interacting with the property right now.

As with request to the core reporting API, you will need to know the profile id. We are going to make our request to Google Analytics so we will be using our AnalyticsRealTimeService.

var RealTimeRequest = AnalyticsRealTimeService.Data.Realtime.Get("ga:" + ProfileId.ToString(), "rt:activeUsers");
var RealTimeResults = RealTimeRequest.Execute();

RealTimeResults now contains the response from the server. I recommend that you check RealTimeResults.TotalResults if there is no one on the site right now TotalResults will be 0 so there is no reason to continue anymore.

Because we are not requesting any dimensions and only one metric we know that there will only be one row with one column returned.

int ActiveUsersNow = 0;
if (RealTimeResults.TotalResults > 0) {
 ActiveUsersNow = Int32.Parse(RealTimeResults.Rows[0][0]);    // number of users active on the site now.
 }

Mirror API

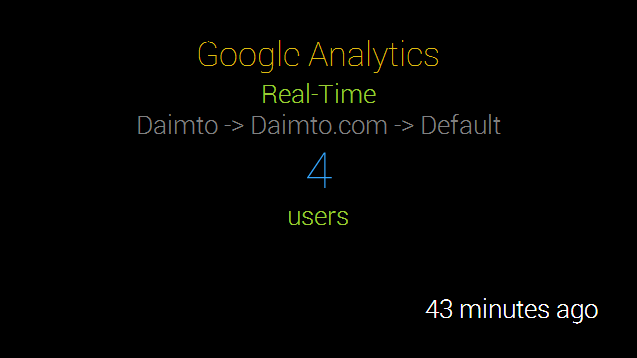

Now that we have the ActiveUsersNow we will want to write that to Glass.   We have a couple of options here. You can right just strait text to the timeline, or you can writ3 some html and make it look nice.

I want to give you a few links i have found useful.

//Writing to time-line
//create a TimeLineItem   Note: you can write to TimeLine.Html and it will use the HTML you add.
Apis.Mirror.v1.Data.TimelineItem TimeLine = new Apis.Mirror.v1.Data.TimelineItem();
TimeLine.text= ActiveUsersNow.ToString("N0",CultureInfo.CurrentCulture);
// write the timeline item to Glass
var o = GoogleAutentication.GlassService.Timeline.Insert(TimeLine).Execute();

I am having WordPress issues it will not let me post put the HTML code; you will have to trust me that it works.

Conclusion

Writing to the Glass Time-line is very easy with C#.   GitHub project with slightly confusing directory structure can be found at LindaLawton/Google.MirrorAPI.dotnet
